KIPDA Regional ITS Architecture

Service Packages For: TARC - ATMS06-2

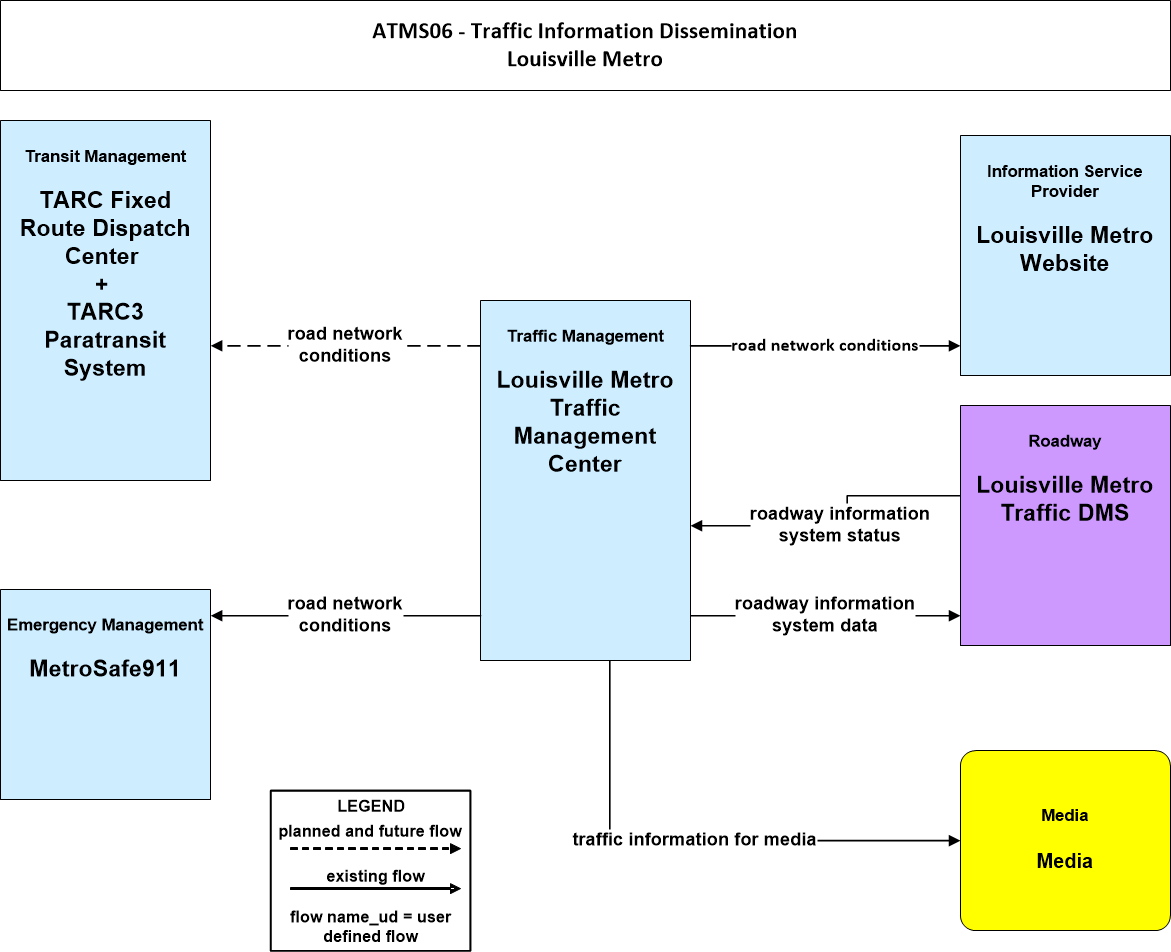

  ATMS06-2
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Media Local Media
TARC Fixed Route Dispatch Center TARC
TARC3 Paratransit System TARC
Louisville Metro Traffic Management Center Louisville Metro Traffic
Louisville Metro Traffic DMS Louisville Metro Traffic
MetroSafe911 Louisville Metro Emergency Services
Louisville Metro Website Louisville Metro Traffic

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Metro Traffic Louisville Metro Traffic DMS Roadway Traffic Information Dissemination This equipment package includes field elements that provides information to drivers, including dynamic message signs and highway advisory radio.
Louisville Metro Traffic Louisville Metro Traffic Management Center TMC Traffic Information Dissemination This equipment package disseminates traffic and road conditions, closure and detour information, incident information, driver advisories, and other traffic-related data to other centers, the media, and driver information systems. It monitors and controls driver information system field equipment including dynamic message signs and highway advisory radio, managing dissemination of driver information through these systems.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Louisville Metro Traffic DMS roadway information system status Louisville Metro Traffic Management Center
Louisville Metro Traffic Management Center roadway information system data Louisville Metro Traffic DMS
Louisville Metro Traffic Management Center traffic information for media Media
Louisville Metro Traffic Management Center road network conditions TARC Fixed Route Dispatch Center
Louisville Metro Traffic Management Center road network conditions TARC3 Paratransit System
Louisville Metro Traffic Management Center road network conditions Louisville Metro Website
Louisville Metro Traffic Management Center road network conditions MetroSafe911
