Interface: City of Wichita Falls Field Equipment To City of Wichita Falls Traffic Operations Center

Architecture Geographic Scope

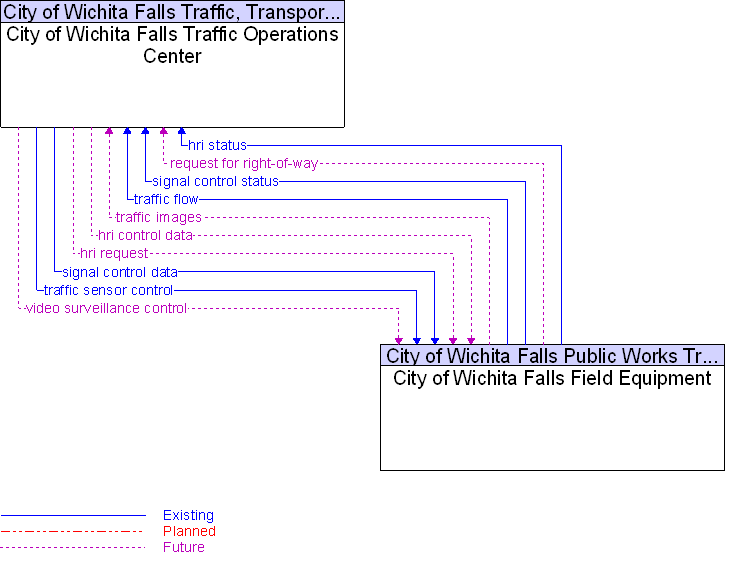

City of Wichita Falls Field Equipment to City of Wichita Falls Traffic Operations Center Interface Diagram



Architecture Flow Definitions

hri control data   (Future)   No Applicable ITS Standards

Data required for HRI information transmitted at railroad grade crossings and within railroad operations.



hri request   (Future)   No Applicable ITS Standards

A request for highway-rail intersection status or a specific control request intended to modify HRI operation.



hri status   (Existing)   No Applicable ITS Standards

Status of the highway-rail intersection equipment including both the current state or mode of operation and the current equipment condition.



request for right-of-way   (Future)   Applicable ITS Standards

Forwarded request from signal prioritization, signal preemption, pedestrian call, multi-modal crossing activation, or other source for right-of-way.



signal control data   (Existing)   Applicable ITS Standards

Information used to configure and control traffic signal systems.



signal control status   (Existing)   Applicable ITS Standards

Status of surface street signal controls.



traffic flow   (Existing)   Applicable ITS Standards

Raw and/or processed traffic detector data which allows derivation of traffic flow variables (e.g., speed, volume, and density measures) and associated information (e.g., congestion, potential incidents).



traffic images   (Future)   Applicable ITS Standards

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and the operational status of the surveillance system.



traffic sensor control   (Existing)   Applicable ITS Standards

Information used to configure and control traffic sensor systems.



video surveillance control   (Future)   Applicable ITS Standards

Information used to configure and control video surveillance systems.
