KIPDA Regional ITS Architecture

Service Packages For: Kentucky Justice Cabinet - EM01-05

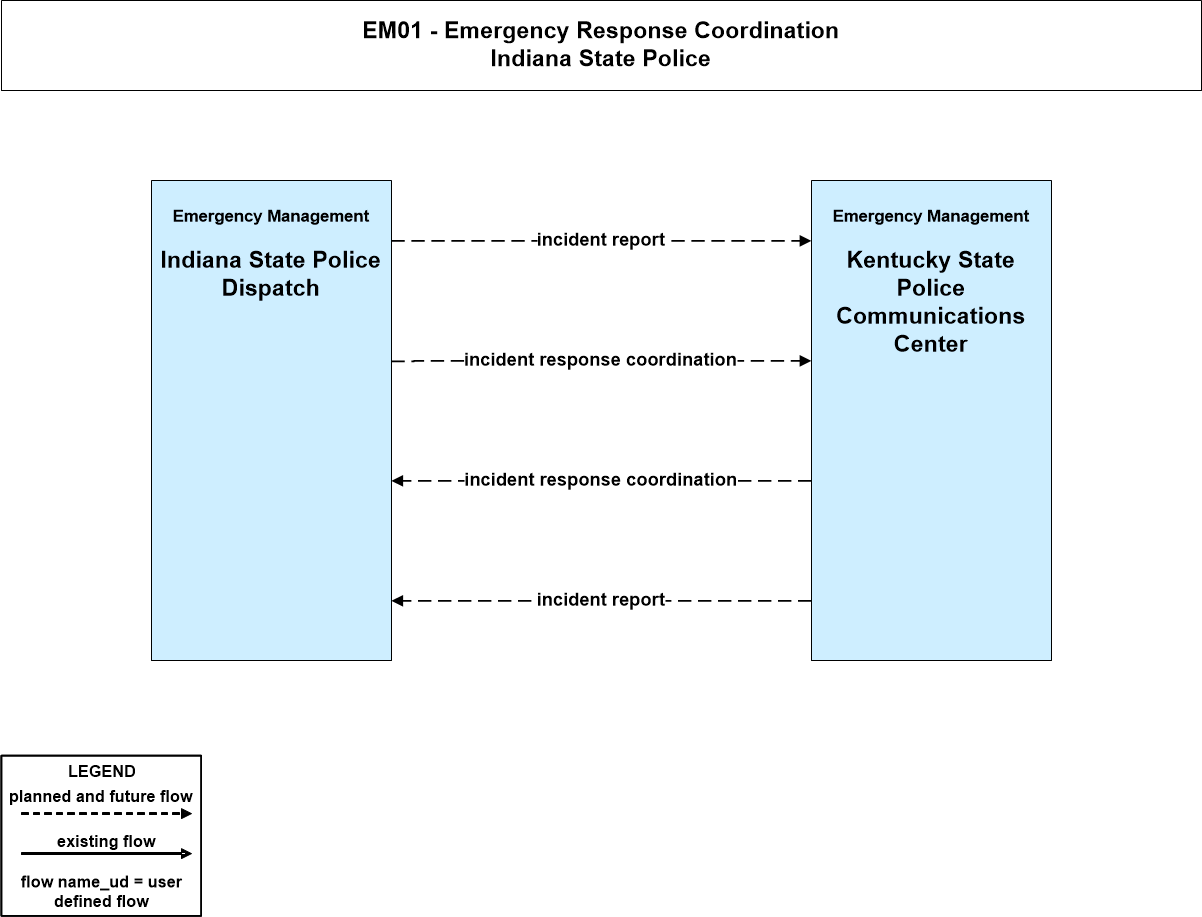

  EM01-05
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Kentucky State Police Communications Center Kentucky Justice Cabinet
Indiana State Police Dispatch Indiana State Police

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Indiana State Police Indiana State Police Dispatch Emergency Call-Taking This equipment package supports the emergency call-taker, collecting available information about the caller and the reported emergency, and forwarding this information to other equipment packages that formulate and manage the emergency response. This equipment package receives 9-1-1, 7-digit local access, and motorist call-box calls and interfaces to other agencies to assist in the verification and assessment of the emergency and to forward the emergency information to the appropriate response agency.
Indiana State Police Indiana State Police Dispatch Emergency Dispatch This equipment package tracks the location and status of emergency vehicles and dispatches these vehicles to incidents. Pertinent incident information is gathered from the public and other public safety agencies (see the Emergency Call-Taking equipment package) and relayed to the responding units. Incident status and the status of the responding units is tracked so that additional units can be dispatched and/or unit status can be returned to available when the incident is cleared and closed.
Kentucky Justice Cabinet Kentucky State Police Communications Center Emergency Call-Taking This equipment package supports the emergency call-taker, collecting available information about the caller and the reported emergency, and forwarding this information to other equipment packages that formulate and manage the emergency response. This equipment package receives 9-1-1, 7-digit local access, and motorist call-box calls and interfaces to other agencies to assist in the verification and assessment of the emergency and to forward the emergency information to the appropriate response agency.
Kentucky Justice Cabinet Kentucky State Police Communications Center Emergency Dispatch This equipment package tracks the location and status of emergency vehicles and dispatches these vehicles to incidents. Pertinent incident information is gathered from the public and other public safety agencies (see the Emergency Call-Taking equipment package) and relayed to the responding units. Incident status and the status of the responding units is tracked so that additional units can be dispatched and/or unit status can be returned to available when the incident is cleared and closed.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Kentucky State Police Communications Center incident report Indiana State Police Dispatch
Kentucky State Police Communications Center incident response coordination Indiana State Police Dispatch
Indiana State Police Dispatch incident response coordination Kentucky State Police Communications Center
Indiana State Police Dispatch incident report Kentucky State Police Communications Center
