KIPDA Regional ITS Architecture

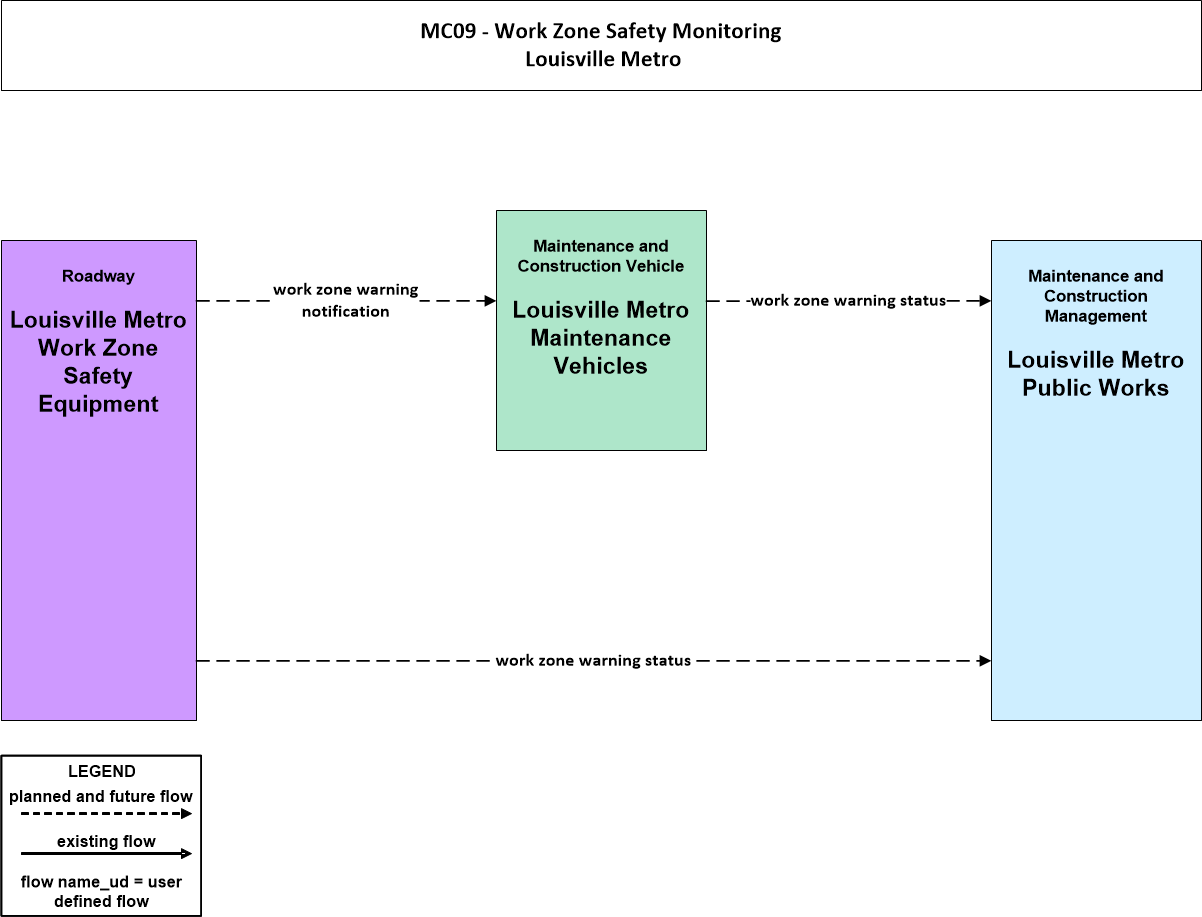

Service Packages For: Louisville Metro Public Works - MC09-02

  MC09-02
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Louisville Metro Maintenance Vehicles Louisville Metro Public Works
Louisville Metro Work Zone Safety Equipment Louisville Metro Public Works
Louisville Metro Public Works Louisville Metro Public Works

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Metro Public Works Louisville Metro Maintenance Vehicles MCV Vehicle Safety Monitoring This equipment package detects vehicle intrusions in the vicinity of the vehicle and warns crew workers and drivers of imminent encroachment. Crew movements are also monitored so that the crew can be warned of movement beyond the designated safe zone. This equipment package can be used for stationary work zones or in mobile applications where a safe zone is maintained around the moving vehicle.
Louisville Metro Public Works Louisville Metro Work Zone Safety Equipment Roadway Work Zone Safety This equipment package includes field elements that detect vehicle intrusions in work zones and warns crew workers and drivers of imminent encroachment. Crew movements are also monitored so that the crew can be warned of movement beyond the designated safe zone.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Louisville Metro Work Zone Safety Equipment work zone warning status Louisville Metro Public Works
Louisville Metro Maintenance Vehicles work zone warning status Louisville Metro Public Works
Louisville Metro Work Zone Safety Equipment work zone warning notification Louisville Metro Maintenance Vehicles
