KIPDA Regional ITS Architecture

Service Packages For: Louisville Metro Public Works - MC06-02

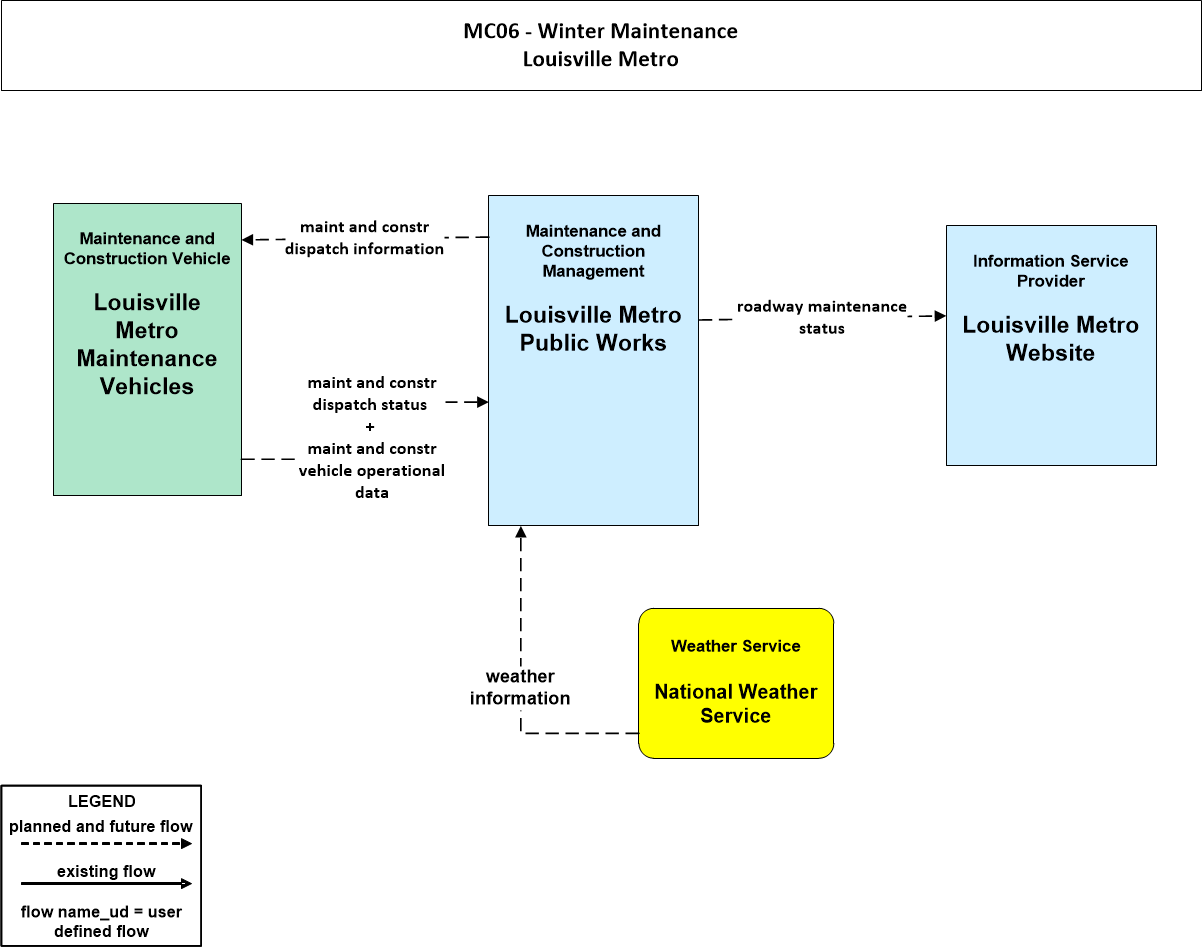

  MC06-02
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Louisville Metro Public Works Louisville Metro Public Works
Louisville Metro Website Louisville Metro Traffic
Louisville Metro Maintenance Vehicles Louisville Metro Public Works
National Weather Service NOAA

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Metro Public Works Louisville Metro Maintenance Vehicles MCV Winter Maintenance This on-board equipment package supports snow plow operations and other roadway treatments (e.g., salt spraying and other material applications). It supports communications with the center to receive information and instructions that are provided to the vehicle operator and also supports remote control of on-board systems. The equipment package tracks operational status of snow and ice control operations and provides this information back to the center.
Louisville Metro Public Works Louisville Metro Public Works MCM Maintenance Decision Support This equipment package recommends maintenance courses of action based on current and forecast environmental and road conditions and additional application specific information. Decisions are supported through understandable presentation of filtered and fused environmental and road condition information for specific time horizons as well as specific maintenance recommendations that are generated by the system based on this integrated information. The recommended courses of action are supported by information on the anticipated consequences of action or inaction, when available.
Louisville Metro Public Works Louisville Metro Public Works MCM Winter Maintenance Management This equipment package manages winter road maintenance, tracking and controlling snow plow operations, roadway treatment (e.g., salt spraying and other material applications), and other snow and ice control operations. It monitors environmental conditions and weather forecasts and uses the information to schedule winter maintenance activities, determine the appropriate snow and ice control response, and track and manage response operations.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
National Weather Service weather information Louisville Metro Public Works
Louisville Metro Maintenance Vehicles maint and constr vehicle operational data Louisville Metro Public Works
Louisville Metro Maintenance Vehicles maint and constr dispatch status Louisville Metro Public Works
Louisville Metro Public Works roadway maintenance status Louisville Metro Website
Louisville Metro Public Works maint and constr dispatch information Louisville Metro Maintenance Vehicles
