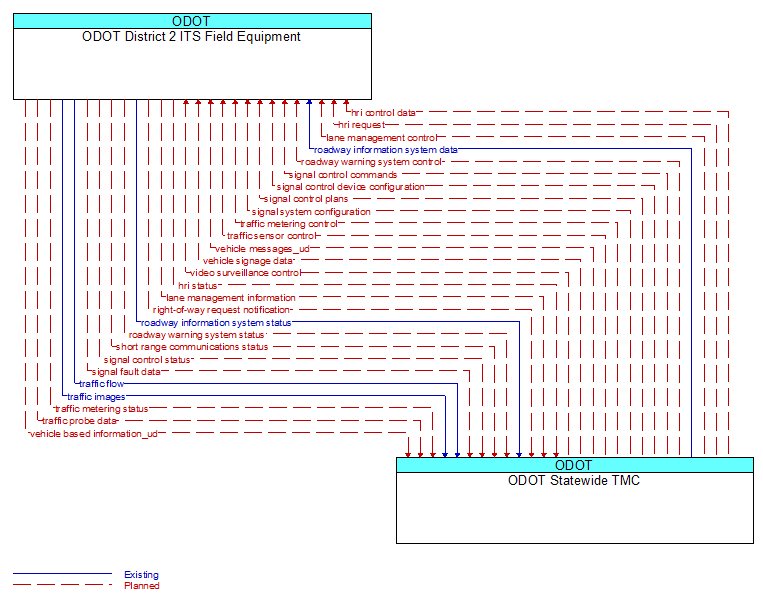

Interconnect: ODOT District 2 ITS Field Equipment - ODOT Statewide TMC
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
ODOT District 2 ITS Field Equipment
lane management information (P)
short range communications status (P)
vehicle based information_ud (P)
roadway warning system status (P)
hri status (P)
traffic metering status (P)
roadway information system status (E)
signal fault data (P)
signal control status (P)
right-of-way request notification (P)
traffic probe data (P)
traffic images (E)
traffic flow (E)
ODOT Statewide TMC
ODOT Statewide TMC
lane management control (P)
vehicle signage data (P)
vehicle messages_ud (P)
roadway warning system control (P)
hri request (P)
hri control data (P)
traffic metering control (P)
roadway information system data (E)
signal system configuration (P)
signal control plans (P)
signal control device configuration (P)
signal control commands (P)
video surveillance control (P)
traffic sensor control (P)
ODOT District 2 ITS Field Equipment
