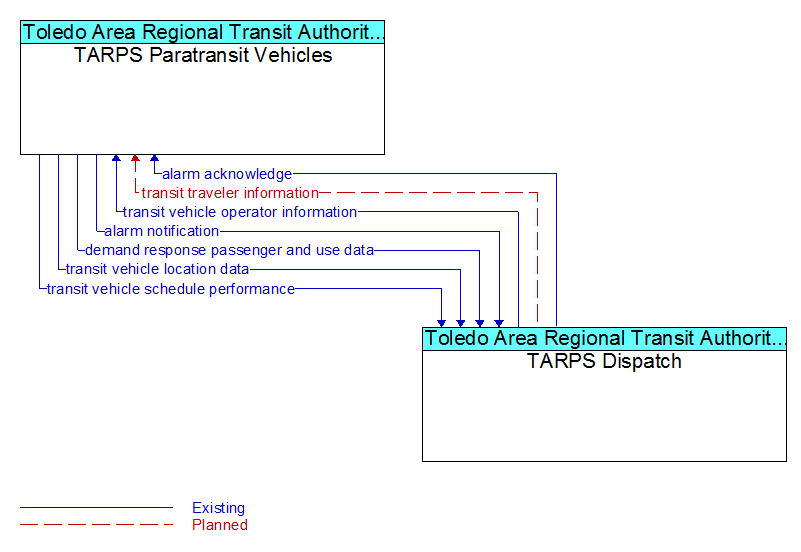

Interconnect: TARPS Paratransit Vehicles - TARPS Dispatch
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
TARPS Paratransit Vehicles
alarm notification (E)
demand response passenger and use data (E)
transit vehicle schedule performance (E)
transit vehicle location data (E)
TARPS Dispatch
TARPS Dispatch
transit traveler information (P)
alarm acknowledge (E)
transit vehicle operator information (E)
TARPS Paratransit Vehicles
