Service Packages For: Medical Transportation - ATMS08-4 |
|
ATMS08-4

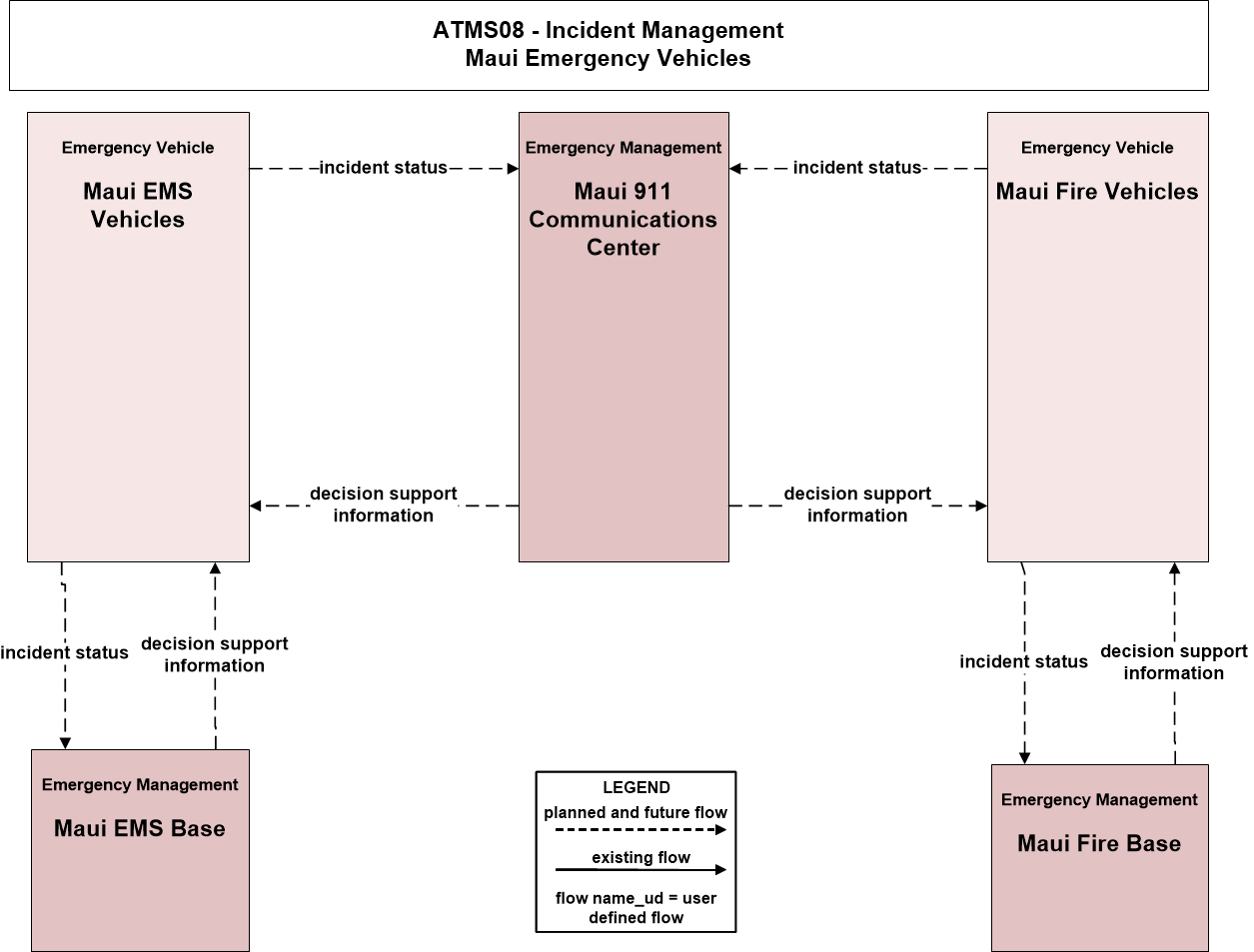

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram. |
![](ATMS08-4.gif) |
List of Elements on this Diagram Click on Element Name to go to Element Detail Page.
|
List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
|
Stakeholder |
Element Name |
Functional Area/Role |
Functional Area Description |
County of Maui Department of Fire and Public Safety |
Maui Fire Base |
Emergency Response Management |
This equipment package provides the strategic emergency response capabilities and broad inter-agency interfaces that are implemented for extraordinary incidents and disasters that require response from outside the local community. It provides the functional capabilities and interfaces commonly associated with Emergency Operations Centers. This equipment package develops and stores emergency response plans and manages overall coordinated response to emergencies. It monitors real-time information on the state of the regional transportation system including current traffic and road conditions, weather conditions, special event and incident information. It tracks the availability of resources and assists in the appropriate allocation of these resources for a particular emergency response. This equipment package provides coordination between multiple allied agencies before and during emergencies to implement emergency response plans and track progress through the incident. It also coordinates with the public through the Emergency Telecommunication Systems (e.g., Reverse 911). This equipment package coordinates with public health systems to provide the most appropriate response for emergencies involving biological or other medical hazards. |
County of Maui Department of Fire and Public Safety |
Maui Fire Base |
Incident Command |
The equipment package provides tactical decision support, resource coordination, and communications integration for Incident Commands that are established by first responders at or near the incident scene to support local management of an incident. The equipment package supports communications with public safety, emergency management, transportation, and other allied response agency centers, tracks and maintains resource information, action plans, and the incident command organization itself. Information is shared with agency centers including resource deployment status, hazardous material information, traffic, road, and weather conditions, evacuation advice, and other information that enables emergency or maintenance personnel in the field to implement an effective, safe incident response. This equipment package supports the functions and interfaces commonly supported by a mobile command center. |
County of Maui Department of Fire and Public Safety |
Maui Fire Vehicles |
On-board EV Incident Management Communication |
This on-board equipment package provides communications support to first responders. Information about the incident, information on dispatched resources, and ancillary information such as road and weather conditions are provided to emergency personnel. Emergency personnel transmit information about the incident such as identification of vehicles and people involved, the extent of injuries, hazardous material, resources on site, site management strategies in effect, and current clearance status. Emergency personnel may also send in-vehicle signing messages to approaching traffic using short range communications. |
County of Maui Police Department |
Maui 911 Communications Center |
Incident Command |
The equipment package provides tactical decision support, resource coordination, and communications integration for Incident Commands that are established by first responders at or near the incident scene to support local management of an incident. The equipment package supports communications with public safety, emergency management, transportation, and other allied response agency centers, tracks and maintains resource information, action plans, and the incident command organization itself. Information is shared with agency centers including resource deployment status, hazardous material information, traffic, road, and weather conditions, evacuation advice, and other information that enables emergency or maintenance personnel in the field to implement an effective, safe incident response. This equipment package supports the functions and interfaces commonly supported by a mobile command center. |
Medical Transportation |
Maui EMS Base |
Emergency Response Management |
This equipment package provides the strategic emergency response capabilities and broad inter-agency interfaces that are implemented for extraordinary incidents and disasters that require response from outside the local community. It provides the functional capabilities and interfaces commonly associated with Emergency Operations Centers. This equipment package develops and stores emergency response plans and manages overall coordinated response to emergencies. It monitors real-time information on the state of the regional transportation system including current traffic and road conditions, weather conditions, special event and incident information. It tracks the availability of resources and assists in the appropriate allocation of these resources for a particular emergency response. This equipment package provides coordination between multiple allied agencies before and during emergencies to implement emergency response plans and track progress through the incident. It also coordinates with the public through the Emergency Telecommunication Systems (e.g., Reverse 911). This equipment package coordinates with public health systems to provide the most appropriate response for emergencies involving biological or other medical hazards. |
Medical Transportation |
Maui EMS Base |
Incident Command |
The equipment package provides tactical decision support, resource coordination, and communications integration for Incident Commands that are established by first responders at or near the incident scene to support local management of an incident. The equipment package supports communications with public safety, emergency management, transportation, and other allied response agency centers, tracks and maintains resource information, action plans, and the incident command organization itself. Information is shared with agency centers including resource deployment status, hazardous material information, traffic, road, and weather conditions, evacuation advice, and other information that enables emergency or maintenance personnel in the field to implement an effective, safe incident response. This equipment package supports the functions and interfaces commonly supported by a mobile command center. |
Medical Transportation |
Maui EMS Vehicles |
On-board EV Incident Management Communication |
This on-board equipment package provides communications support to first responders. Information about the incident, information on dispatched resources, and ancillary information such as road and weather conditions are provided to emergency personnel. Emergency personnel transmit information about the incident such as identification of vehicles and people involved, the extent of injuries, hazardous material, resources on site, site management strategies in effect, and current clearance status. Emergency personnel may also send in-vehicle signing messages to approaching traffic using short range communications. |
List of Flows on this Diagram Click on Architecture Flow to go to Page with Applicable ITS Standards.
|
|
|
|
|
